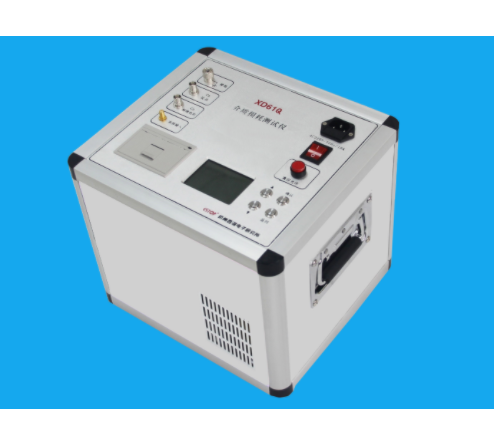

XD61Q Compact Tan Delta Tester
XD61Q is our new generation tan delta tester designed specifically for GIS stations. By applying advanced composite materials and new manufacturing process, we made XD61Q the smallest and lightest full function tan delta tester.
• Portability:Compared with other testers with same functionality: 50% less volume, 40% less weight, and 20% thinner cables.
• Compatibility:No need to remove the bushing end-cap sensor for tan delta testing, if the sensor is our compatible product.
• Robust to interference:Accurate test results even under interference at 500% of the current being measured.
• Full protection:The tester is comprehensively protected from accidents including over current, over voltage, insulation failure, capacitive voltage rise, and grounding failure.
• Safety connectors:Fully insulated safety connectors prevent any accidental touching of high voltage.
• Reliable:Failure rate lower than 1‰.
Accuracy: 1% Range: No limit Accuracy: 1% Range: 3pF ~ 60nF@10kV Compare with tester on the market Comparison of HV cables Verification report from SGCC Metrology Center Comparison of insulated HV output terminals Comparison of insulated safety connectors Operation user interface
Tan delta testing
0.5 ~ 10kV
Testing AC frequency
Single/dual frequency, 45 ~ 55Hz
Range: No limit
Range: 3pF ~ 60nF@10kV
Compare with tester on the market
Comparison of HV cables
Verification report from SGCC Metrology Center
Comparison of insulated HV output terminals
Comparison of insulated safety connectors
Operation user interface
