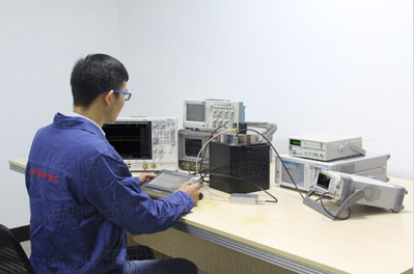

Key Features:

•  Comprehensive assessment:The system can comprehensively assess and verify the functionality and performance of AE

PD detectors, including sensitivity, linearity, frequency band, sampling continuity, pulse counting, pattern recognition &

diagnosis, and more.

•  Acoustic pulse generator:Generates pulses and simulated signals with adjustable amplitude, frequency, and interval.

•  Professional-grade components:The acoustic transducer for verification purpose has wide frequency response band (10 ~

300kHz) with flat amplitude-frequency curve within the frequency band.The acoustic testing platform is made of A36 hot rolled

steel, which has consistent attenuation coefficient on each frequency band.

•  Discharge pattern simulation:Simulates typical discharge patterns including tip discharge, particle discharge, floating

discharge, air-gap discharge, and creeping discharge.

•  Pulse counting verification:Generates pulses with fixed or random intervals to verify the continuity of sampling and the pulse

count functionality.

•  Automated testing:Highly automated all-in-one software can perform all testing items and generate test reports with one

click.

•  Data storage:Can store the records of all assessed instruments for diagnosis and analysis.

Technical Specifications:

•  Pulse output                                              Single pulses, simulated discharge patterns;

•  Pulse shape                                              Rising edge ≤100ns, amplitude: 0 ~ 20V;

•  Single pulse interval                                  Fixed, random;

•  Simulated discharge patterns                   Tip, particle, floating, air-gap, and creeping;

•  Synchronization output                             Sinewave, 30 ~ 200Hz, 24V;

•  Standard sensor                                       20 ~ 200kHz;

•  Acoustic transducer                                  Frequency band 10 ~ 300kHz, amplitude 0 ~ 100V;

•  Acoustic testing platform                          Diameter 200mm, height 250mm;

•  Oscilloscope                                             Bandwidth ≥500MHz, sampling rate≥1GS/s；

•  Standard signal source                             Frequency 0 ~ 10MHz, amplitude 0 ~ 20V.
