XD57 Oscillating Wave PD Detection & Localization System for Power Cables

The Oscillating Wave Test (OWT), also known as the Damped Alternative Current (DAC) test, is a powerful way to detect and localize partial discharge (PD) activities in MV and LV power cables. Our XD57 system is designed to preform OWT conveniently and intelligently with a portable package.

Features:

•  Patented design:Patented proprietary design, equal or better performance compared with top brand systems.
•  Good equivalency:Oscillating wave effectively triggers PD activities, which achieves same effectiveness as conventional PD testing with voltage on the operational frequency.
•  Damage free:The oscillating wave is applied for very short time thus the cable will not be damaged.
•  Works under interferences:With advanced waveform discrimination capability, our system works in even the most complicated testing environment with strong interferences.

• Safety first:Comprehensive isolation and insulation designs, combined with full-process active safety protection, ensures the safety of personnel and equipment.

• Compact and portable:Light weight and compact design make carrying and testing easier.

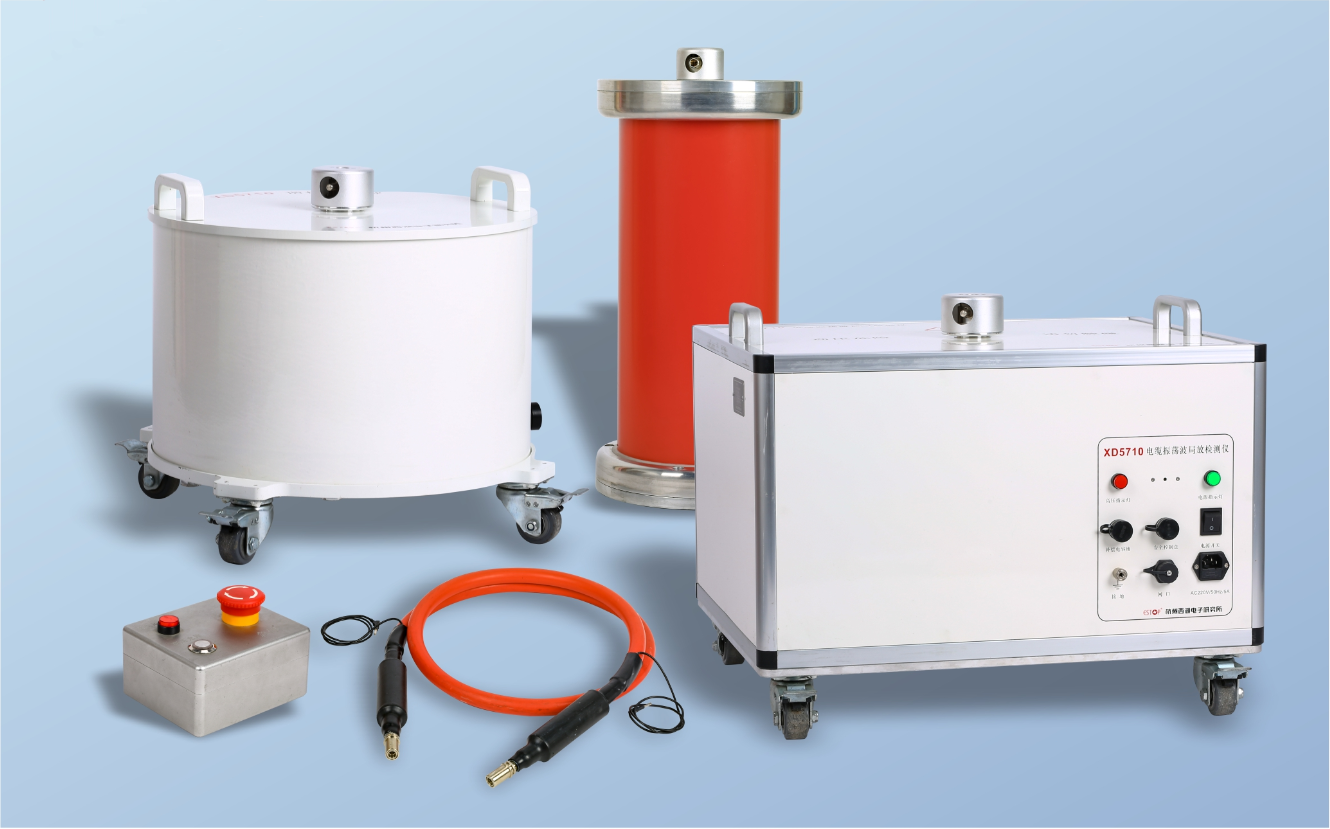

System Components:

Product Models:

Model	Voltage rating
XD5710	For cables rated 10kV and lower
XD5735	For cables rated 35kV and lower

Technical Specifications:

Power supply	Charging method	DC excitation	PD measuring	Range	1pC ~ 20nC
	Charging current	≥10mA		Sensitivity	0.1pC
	Output voltage	XD5710: DC 0 ~ 28kV		Sampling rate	125MS/s, 250MS/s
	Output voltage	XD5735: DC 0 ~ 60kV		Sampling resolution	12Bit
Testing parameters	Oscillating frequency	30 ~ 500Hz	Fault localization	Localization frequency band	150kHz ~ 30MHz
Testing parameters	Test subject capacity	0.05 ~ 2uF	Fault localization	Localization error	≤1% of full-length

pictures:

PD-free quick connector

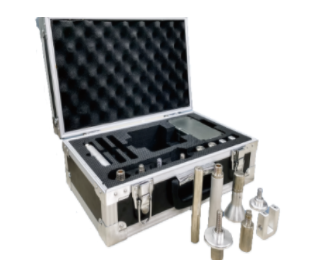

PD-free connector accessories

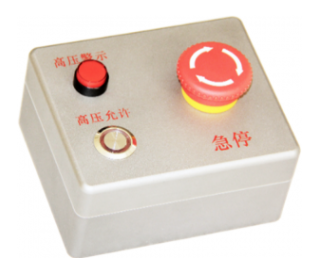

Safety box

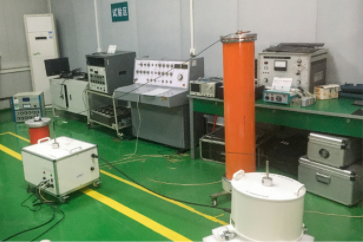

Certified by national qualification center

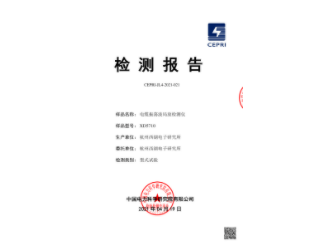

Certification report

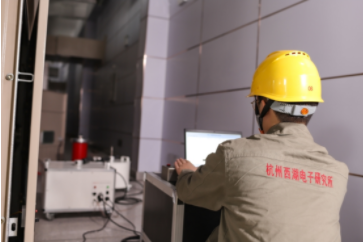

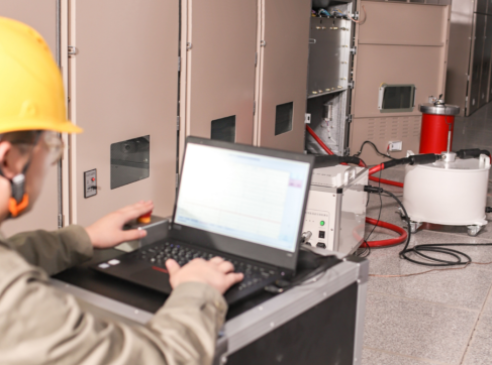

Test demonstration
