Complying Standards:

•  DL/T* 1250-2013 Application guidelines for charged gas-insulated metal-enclosure switchgear device partial discharge detection with ultrasonic method.

•  DL/T 555 Guide for withstand voltage and insulated test for gas-insulated metal-enclosure switchgear on site.

•  Q/GDW** 11059.2-2013 Field application guide for partial discharge on-site testing technology of Gas Insulated Switchgear Part 2: Ultra high frequency.

•  *DL/T stands for “Recommended standards of electric power industry of China”.

•   **Q/GDW stands for “Corporation standard of State Grid Corporation of China”.

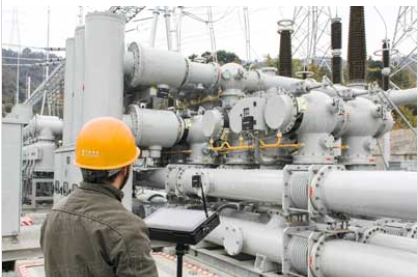

Features:

•  Detecting unit Automated testing:Fully automated testing process captures discharge characteristics and locations of key-events from partial discharges to insulation breakdowns.

•  AE-UHF joint detection:Synchronized UHF and AE PD detection brings revolutionary performance improvement in the orders of magnitude compared with AE method alone.

•  Industry-leading sensitivity:Sensitivity equal to or better than 0.1pC.

•  Robust to interference:Complete suite of interference reducing technologies: Spectrum analysis, frequency-selective filtering, interference separation, and comprehensive shielding.

•  Electrically robust:No freezing or data lost after flashover accident.

•  Diagnosis and analysis:Full range of analysis assisting graphical interfaces: PR, PRPD, PRPS, Correlation, and Selecting/masking windowing.Built-in interference and discharge patterns for automated signal classification.

•  Accurate localization:Supports highly accurate electric, acoustic, and electric-acoustic localization.Localization accuracy≤10cm; Error rate ≤5%.

•  Synchronization:Wired or wireless synchronization of timing and phase.

•  Go wireless:Multiple detector units working together with wireless communication and synchronization.Adding or removing detector units as needed.

•  Safety first:Personnel and equipment are separated from high voltage.

•  High reliability:System is fully functional with any of the following mean of communications: Wi-Fi, Cellular, or fiber optics.Power supply through grid power, internal battery, and expandable battery packs.

•  Power supply compatibility:Compatible with a wide range of HV-testing power supplies.

Technical Specifications:

•  Sensitivity:                                    ≤1pC;

•  Measuring frequency band:          UHF (300 ~ 1500MHz), AE (20 ~ 200kHz);

•  Localization error:                         ≤10cm;

•  Phase synchronization:                 Mode: wired or wireless; Frequency: 30 ~ 300Hz;

                                                          Voltage:AC 10 ~ 380V; Accuracy: 0.01°;

•  Timing synchronization error:        ≤50ns;

•  Conne  ctivity:                                3G/4G cellular network, Wi-Fi, Fiber optics;

•  Battery:                                          Removable lithium-ion battery, 24V/5Ah.

                                                          Continuous working time > 8hrs.

Product Configuration:
